| 型號 | 簡要區別 |
| RW210SAx系列 | |

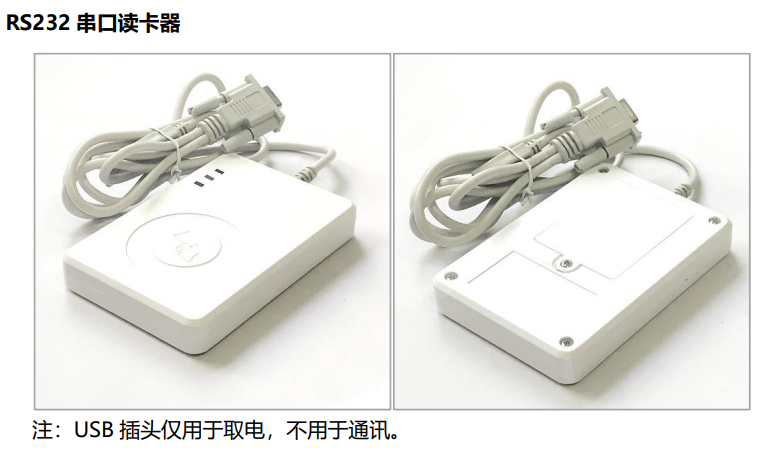

| RW210SAA | RS232接口 ISO14443A+125K |

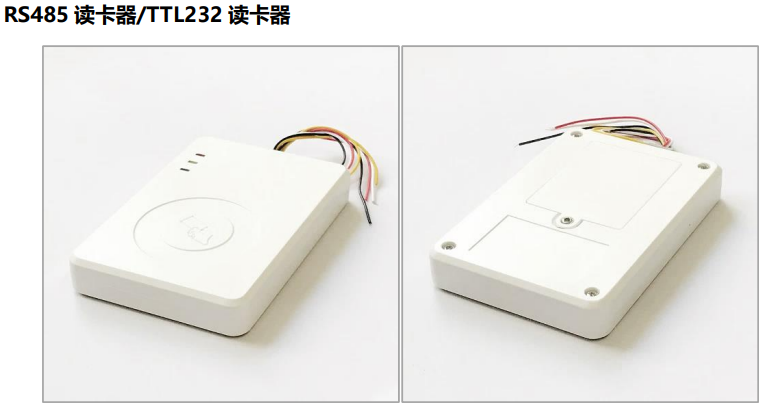

| RW210SAB | RS485接口 ISO14443A+125K |

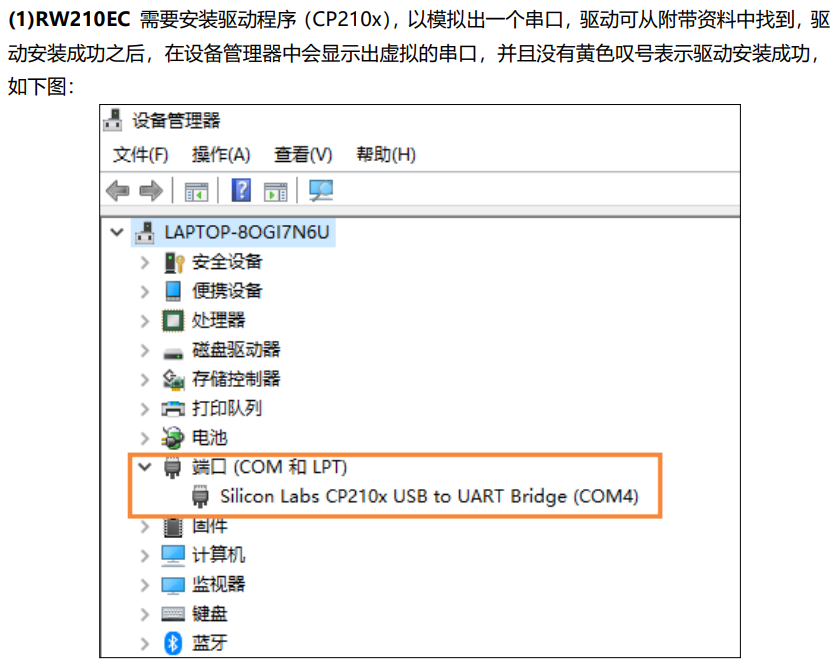

| RW210SAC | USB虛擬串口CP2102 ISO14443A+125K |

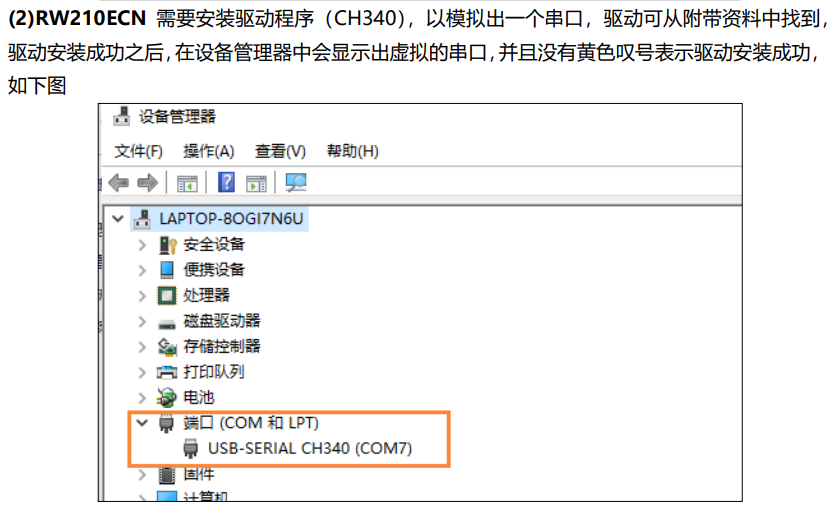

| RW210SACN | USB虛擬串口CH340 ISO14443A+125K |

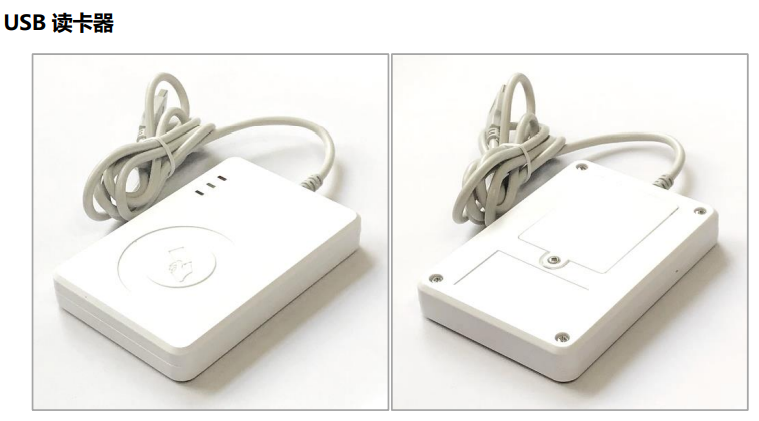

| RW210SAH | USB免驅 ISO14443A+125K |
| RW210SCx系列 | |
| RW210SCA | RS232接口 ISO14443A+SAM+125K |
| RW210SCB | RS485接口 ISO14443A+SAM+125K |
| RW210SCC | USB虛擬串口CP2102 ISO14443A+SAM+125K |
| RW210SCCN | USB虛擬串口CH340 ISO14443A+SAM+125K |
| RW210SCH | USB免驅 ISO14443A+SAM+125K |
>>產品描述
- 全新一代讀卡器，內嵌32位ARM處理器
- 殼體外觀也更美觀
- 采用NXP高度集成讀寫卡芯片射頻基站，性能更優，更穩定
- 符合ISO14443 TYPE A / MIFARE 標準/125K/ISO7816
- 可支持IC卡(與型號有關)：
- ISO14443A: Mifare 1K/4K，F(xiàn)M11RF08，Ultralight, Ntag203, Nta213, Ntag215, Ntag216, 符合 T=CL 協議的CPU
- 卡(ISO14443A)，F(xiàn)M1208, Desfire EV1/EV2 D21, D41, D81，etc
- I25K: EM4001,EM4100,TK4001,TK4100
- 及其兼容卡片
- 可選裝2個PSAM卡座或者2個SOP8 SAM芯片或者2個DIP8 SAM卡芯片
- 內嵌蜂鳴器，指示燈
- 自帶看門狗，防止死機
- 用戶不必關心射頻基站的復雜控制方法，只需通過簡單的命令集可以實現對卡的完全操作
- 上電默認自動尋卡，有卡靠近，綠色指示燈點亮，但是不會主動輸出卡號，如有此需求，請聯系圓志索取新的固件版本
- 為了便于開發者的應用，我們提供了安卓, linux, java, javascript, VC, VB, C++ Builder, DELPHI, Power Builder, C#, VB.NET, CVI的例子程序，開發者可以通過例子程序快速地開展開發工作
- 隨機提供PC-DEMO軟件，進一步方便用戶對讀寫器進行進一步開發與測試
- 讀寫卡器典型讀寫距離30-90mm，與卡片類型有關

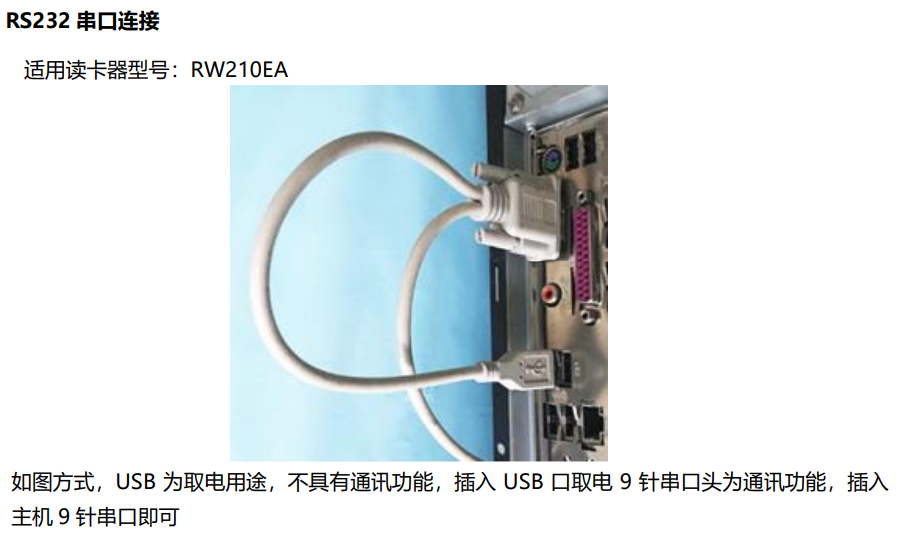

- 讀寫卡器RS232/RS485/USB接口可選
- 波特率可選：115200,57600,38400,19200,9600
- 尺寸125mm*85mm*20mm
- 基于讀卡器的擴展功能很強可根據用戶要求修改軟件定制個性化模塊,不用改變硬件
- 豐富、完善的接口函數，可方便地應用于交通一卡通讀寫器，桌面發卡器，門禁考勤讀寫卡器、汽車電子感應鎖配套等智能卡管理應用系統
>>讀卡器描述
>>主要技術指標
- 讀寫距離:30~90mm
- 電源：DC5V
- 讀卡平均電流：5V/100 mA
- 工作溫度：-10℃～+70℃

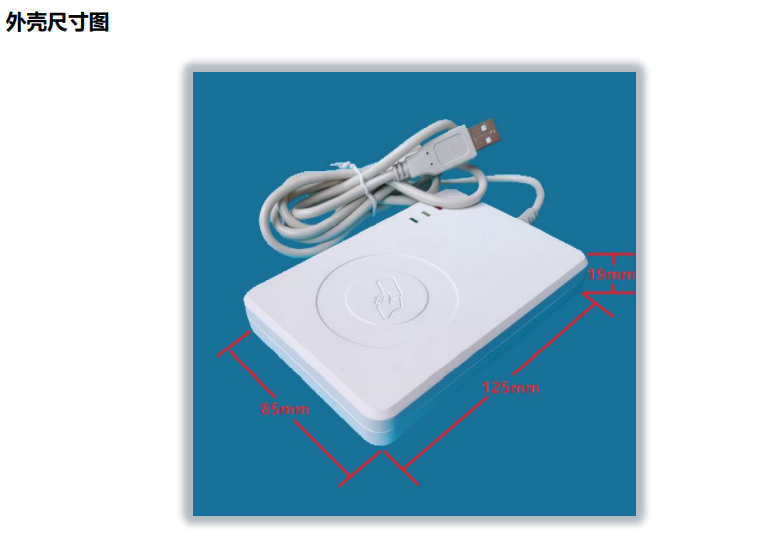

- 尺寸125mm*85mm*20mm
>>型號間主要區別
| 型號 | 主要區別 | 支持卡片類型 |
| RW210SAx系列 | 支持ISO14443A | |
| RW210SAA | RS232接口 ISO14443A+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216及其兼容卡 |
| RW210SAB | RS485接口 ISO14443A+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216及其兼容卡 |
| RW210SAC | USB虛擬串口CP2102 ISO14443A+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216及其兼容卡 |
| RW210SACN | USB虛擬串口CH340 ISO14443A+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216及其兼容卡 |
| RW210SAH | USB免驅 ISO14443A+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216及其兼容卡 |
| RW210SCx系列 | 支持ISO14443A+ISO7816 | |
| RW210SCA | RS232接口 ISO14443A+ISO7816+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216及其兼容卡 |
| RW210SCB | RS485接口 ISO14443A+ISO7816+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216, SAM9600, SAM38400及其兼容卡 |
| RW210SCC | USB虛擬串口CP2102 ISO14443A+ISO7816+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600, SAM38400及其兼容卡 |
| RW210SCCN | USB虛擬串口CH340 ISO14443A+ISO7816+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600, SAM38400及其兼容卡 |
| RW210SCH | USB免驅 ISO14443A+ISO7816+125K | EM4001,EM4100,TK4001,TK4100,Mifare S50,S70,FM11RF08,FM1204,FM1208, DesfireEV1 D21,D41,D81,Ultralight,Ntag203,213, 215,216,SAM9600, SAM38400及其兼容卡 |
>>相關資料下載
